New booking alert to staff via WhatsApp API

The scenario sends the staff manager a personalised WhatsApp template when a new booking is created.

Use case overview

The scenario sends the staff manager a personalised WhatsApp template when a new booking is created. The message includes the customer name, service name, booking date, and booking time. A static URL button opens the schedule.

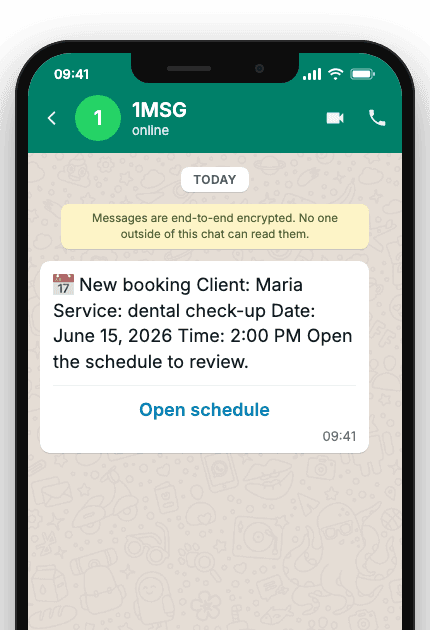

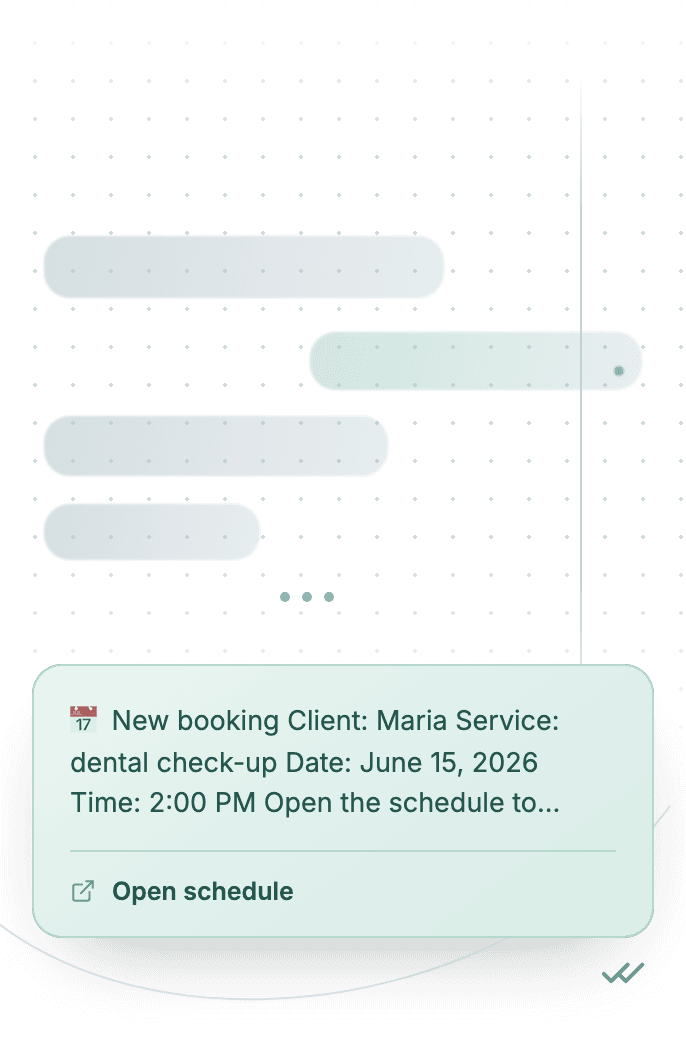

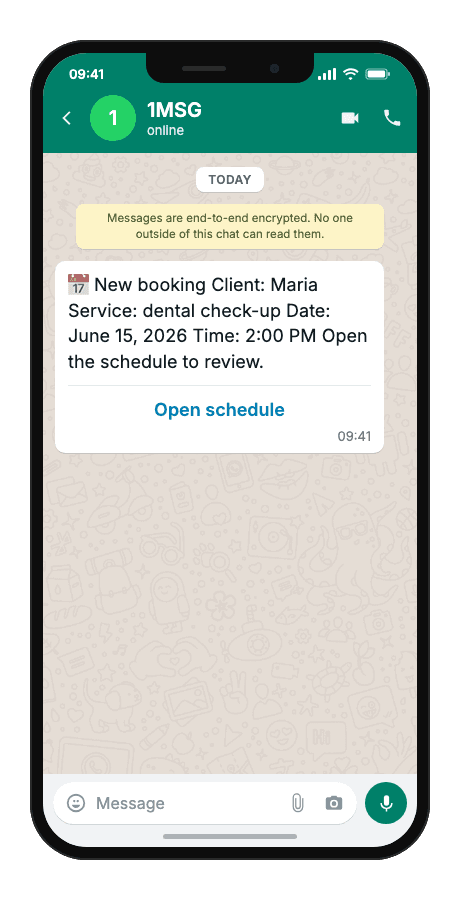

Template example

📅 New booking

Client: {{1}}

Service: {{2}}

Date: {{3}}

Time: {{4}}

Open the schedule to review.

Open schedule
  • {{1}}
    customer name
  • {{2}}
    booked service
  • {{3}}
    booking date
  • {{4}}
    booking time
  • “Open schedule”
    button — fixed in the Meta template
WhatsApp Business API for new booking staff notification

When to use it

Reach for this when a new online or widget booking lands and the assigned staff member or duty manager needs to know before they refresh the calendar or dig through email. It fits clinics and salons with assigned practitioners, field-service teams routing visits to a duty manager, and integrators wiring booking-widget webhooks into internal WhatsApp alerts.

Faster prep before the client arrives
Customer name, service, date and time arrive as four body variables the moment the scheduling system fires the booking event, so the manager sees the slot on their phone without polling the calendar.
Less missed handoff between front desk and specialists
The alert goes to the staff manager's WhatsApp via an approved template on a closed conversation, which is allowed outside the 24-hour window where a free-text message would not be.
Schedule in one tap
A static URL button fixed in the Meta template opens the schedule from the same message, so the manager reviews the day without copying a link from email.
No manual internal ping
The booking widget or CRM event resolves the manager phone and builds the template automatically, so nobody retypes customer details into a group chat.

Workflow

  1. Trigger

    The scheduling system or widget creates a new booking and fires an event.

    event · triggered

  2. Capture event

    The system resolves the staff manager phone number and booking summary fields.

    phone: "+…"

  3. Build & send

    An internal notification template is built with four body variables and a static URL button.

    POST /sendTemplate

  4. Delivered

    The manager receives the WhatsApp alert on their phone.

    delivered

  5. Status tracked

    Delivery result is logged; the manager opens the schedule via the button.

    status: "read"

WhatsApp Business API for new booking staff notification

Technical implementation

Prerequisites

  1. 1MSG API Key · How to get API Key
  2. WhatsApp Business account · How to Connect WABA
  3. WhatsApp Template · How to Approve WABA Template
  4. Customer opt-in · How to Manage Customers Consent

Code examples

#!/usr/bin/env bash
set -euo pipefail

# === Configuration (replace "___" placeholders) ===

API_BASE_URL="https://api.1msg.io"        # production 1MSG API base URL
CHANNEL_ID="___"                           # channel ID from 1MSG dashboard
API_TOKEN="___"                            # channel JWT token (Bearer)

TEMPLATE_NAME="___"                        # approved template name
TEMPLATE_NAMESPACE="___"                   # template namespace (required — send fails without it)
TEMPLATE_LANGUAGE="___"                    # template language code, e.g. "en"



# === Test data ===
MANAGER_PHONE="___"                 # manager phone in international format
TEST_CUSTOMERNAME="___"         # {{1}} customer name
TEST_SERVICE="___"         # {{2}} service name
TEST_BOOKINGDATE="___"         # {{3}} booking date
TEST_BOOKINGTIME="___"         # {{4}} booking time

PHONE_NORM="$(printf '%s' "$MANAGER_PHONE" | tr -cd '0-9')"

for pair in "CHANNEL_ID=$CHANNEL_ID" "API_TOKEN=$API_TOKEN" \
            "TEMPLATE_NAME=$TEMPLATE_NAME" "TEMPLATE_NAMESPACE=$TEMPLATE_NAMESPACE" \
            "TEMPLATE_LANGUAGE=$TEMPLATE_LANGUAGE" "MANAGER_PHONE=$MANAGER_PHONE" \
            "TEST_CUSTOMERNAME=$TEST_CUSTOMERNAME" \
            "TEST_SERVICE=$TEST_SERVICE" \
            "TEST_BOOKINGDATE=$TEST_BOOKINGDATE" \
            "TEST_BOOKINGTIME=$TEST_BOOKINGTIME"; do
    val="${pair#*=}"
    if [ -z "$val" ] || [ "$val" = "___" ]; then
        echo "Missing configuration value: ${pair%%=*}" >&2
        exit 1
    fi
done

if [ -z "$PHONE_NORM" ]; then
    echo "Error: phone number has no digits after normalization" >&2
    exit 1
fi

URL="${API_BASE_URL%/}/${CHANNEL_ID}/sendTemplate"

# params carries body ONLY. Button text is fixed in the Meta template — no button param.

# {{1}} customer name → ${TEST_CUSTOMERNAME}
# {{2}} service name → ${TEST_SERVICE}
# {{3}} booking date → ${TEST_BOOKINGDATE}
# {{4}} booking time → ${TEST_BOOKINGTIME}
read -r -d '' PAYLOAD <<JSON || true
{
  "phone": "${PHONE_NORM}",
  "template": "${TEMPLATE_NAME}",
  "namespace": "${TEMPLATE_NAMESPACE}",
  "language": { "policy": "deterministic", "code": "${TEMPLATE_LANGUAGE}" },
  "params": [
    {
      "type": "body",
      "parameters": [
        { "type": "text", "text": "${TEST_CUSTOMERNAME}" },
        { "type": "text", "text": "${TEST_SERVICE}" },
        { "type": "text", "text": "${TEST_BOOKINGDATE}" },
        { "type": "text", "text": "${TEST_BOOKINGTIME}" }
      ]
    }

  ]
}
JSON

RESPONSE="$(curl -s -w '\n%{http_code}' -X POST "$URL" \
    -H "Content-Type: application/json" \
    -H "Authorization: Bearer ${API_TOKEN}" \
    -d "$PAYLOAD")"

HTTP_CODE="$(printf '%s' "$RESPONSE" | tail -n1)"
BODY="$(printf '%s' "$RESPONSE" | sed '$d')"

case "$BODY" in
    *'"sent":true'*) ok=1 ;;
    *) ok=0 ;;
esac

if [ "$HTTP_CODE" -ge 200 ] && [ "$HTTP_CODE" -lt 300 ] && [ "$ok" -eq 1 ]; then
    echo "Message sent to manager."
    echo "API response: $BODY"
else
    echo "Send failed. HTTP status: $HTTP_CODE" >&2
    echo "$BODY" >&2
    exit 1
fi

Response and delivery status

HTTP 2xx and JSON "sent": true mean 1MSG accepted the message for sending — not that it already reached the customer's phone. Save the id field (looks like wamid.…) to correlate delivery callbacks.

200 OKResponse
{
  "sent": true,
  "message": "Sent to [email protected]",
  "description": "Message has been sent to the provider",
  "id": "wamid.HBgLMzgwNjM5..."
}
  • sent

    Accepted for sending — not yet on the customer's phone

  • id

    Store it; delivery callbacks and hookInfo are keyed on this

Delivery statuses and webhooks →

Common errors

StatusAPI responseCauseFix
200Message was not sent: template is not definednamespace, template or language is missing from the request body.Send all three. Take namespace and the exact template name from GET /templates; language is an object: {"policy": "deterministic", "code": "en"}.
200template name (…) does not exist in <language>The template is approved in a different language than the one requested.Use the exact language code the template was approved in (for example es_MX is not the same as es). Check it in GET /templates.
200Message was not sent: provide chatId, phone, bsuid, or usernameNo recipient the channel could resolve.Pass exactly one recipient: phone (country code plus number, digits only), chatId (for example [email protected]) or bsuid.

All error codes →
