Failed delivery attempt alert via WhatsApp API

The scenario sends the customer a personalized WhatsApp template when a delivery attempt fails.

Use case overview

The scenario sends the customer a personalized WhatsApp template when a delivery attempt fails. The message includes the customer name, order number, product name, and instructions for the next attempt or pickup. A static URL button opens reschedule or tracking.

Template example

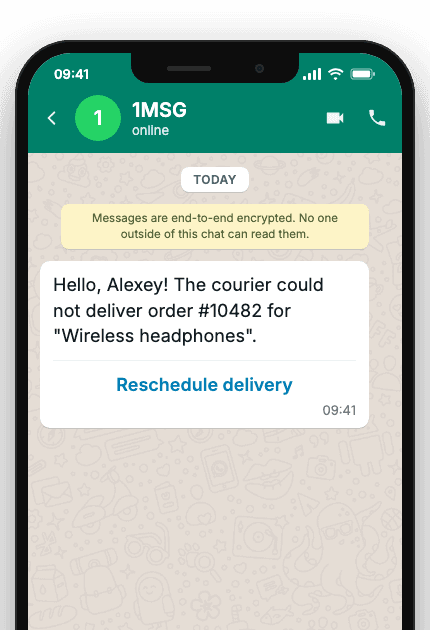

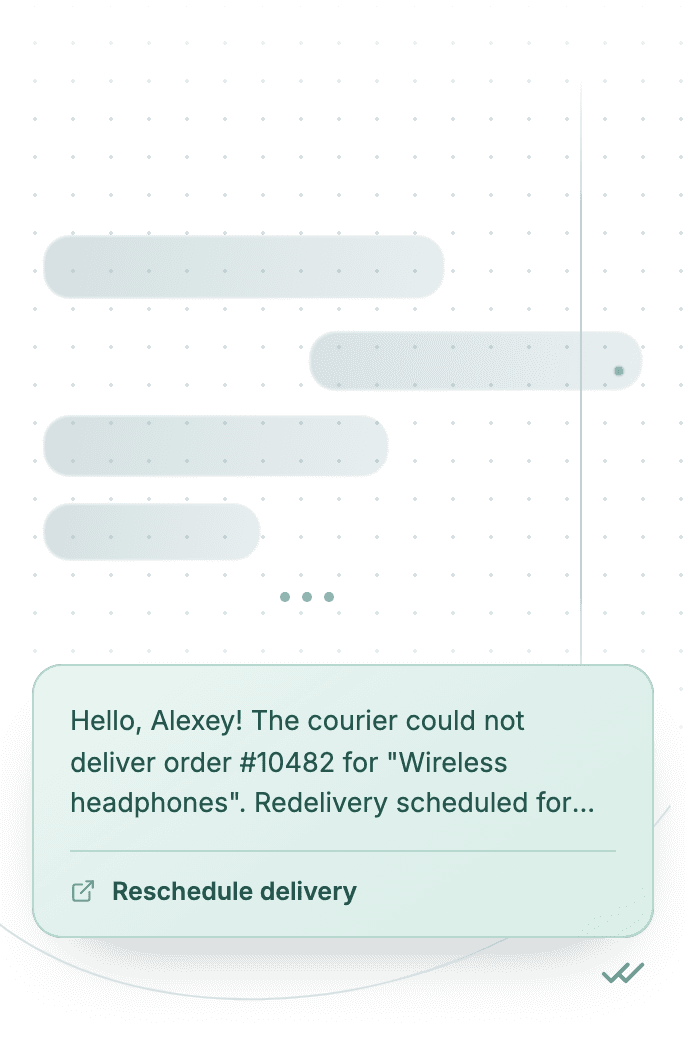

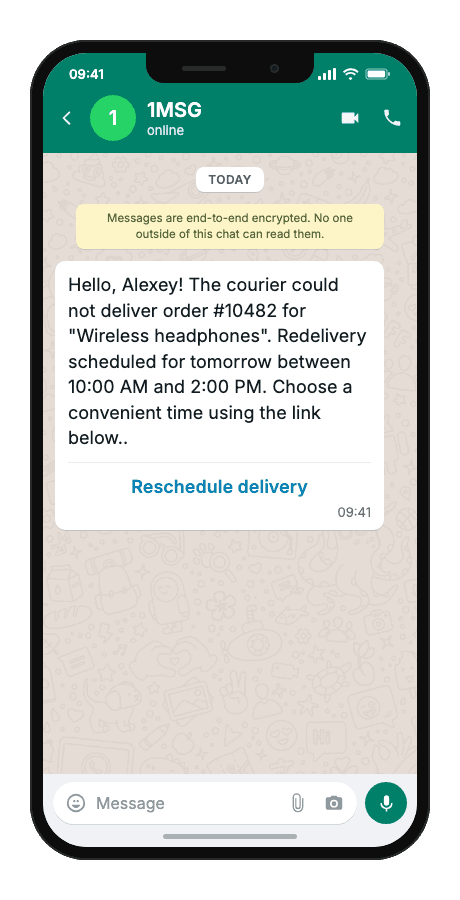

Hello, {{1}}! The courier could not deliver order #{{2}} for "{{3}}". {{4}}.

Reschedule delivery
  • {{1}}
    customer name
  • {{2}}
    order number
  • {{3}}
    product name
  • {{4}}
    next attempt date, pickup option, or failure reason
  • “Reschedule delivery”
    button — fixed in the Meta template
WhatsApp Business API for failed delivery attempt notification

When to use it

Use this scenario when a courier records a failed delivery attempt and the customer needs to know what happened before the parcel returns to the depot — with no open WhatsApp chat to message freely. It fits last-mile logistics teams, e-commerce stores tired of "nobody was home" support calls, and integrators connecting carrier failed-attempt webhooks to WhatsApp outbound.

Fewer "where is my order?" support calls
Four body variables carry the customer name, order number, product and next-step note, so the failure reason and redelivery options land in WhatsApp instead of forcing a phone call to support.
Faster action before the parcel returns to depot
The carrier's failed-attempt event fires the approved template immediately, giving the customer time to reschedule or arrange pickup via the button before the package leaves the route.
No manual follow-up from the logistics team
The system resolves the phone and attempt fields from the carrier event and sends the template automatically — no rep retypes order details for each missed visit.
Clearer redelivery and pickup options
A static "Reschedule delivery" URL button is fixed in the Meta template and opens tracking or rescheduling; only the four body variables are sent via the API.
Delivery status logged for CRM follow-up
Delivery result is logged after send, so the e-commerce platform or CRM keeps the attempt on the order record for logistics follow-up.

Workflow

  1. Trigger

    The carrier records a failed delivery attempt and fires an event.

    event · triggered

  2. Capture event

    The system resolves the customer phone number and attempt fields.

    phone: "+…"

  3. Build & send

    A personalized template message is built with four body variables and a static URL button.

    POST /sendTemplate

  4. Delivered

    The customer receives the WhatsApp update and can reschedule via the button.

    delivered

  5. Status tracked

    Delivery result is logged; errors are handled according to platform rules.

    status: "read"

WhatsApp Business API for failed delivery attempt notification

Technical implementation

Prerequisites

  1. 1MSG API Key · How to get API Key
  2. WhatsApp Business account · How to Connect WABA
  3. WhatsApp Template · How to Approve WABA Template
  4. Customer opt-in · How to Manage Customers Consent

Code examples

#!/usr/bin/env bash
set -euo pipefail

# === Configuration (replace "___" placeholders) ===

API_BASE_URL="https://api.1msg.io"        # production 1MSG API base URL
CHANNEL_ID="___"                           # channel ID from 1MSG dashboard
API_TOKEN="___"                            # channel JWT token (Bearer)

TEMPLATE_NAME="___"                        # approved template name
TEMPLATE_NAMESPACE="___"                   # template namespace (required — send fails without it)
TEMPLATE_LANGUAGE="___"                    # template language code, e.g. "en"



# === Test data ===
TEST_PHONE="___"                 # client phone in international format
TEST_CUSTOMERNAME="___"         # {{1}} customer name
TEST_TICKETNUMBER="___"         # {{2}} ticket number
TEST_PRODUCTNAME="___"         # {{3}} product name
TEST_NEXTSTEP="___"         # {{4}} next step

PHONE_NORM="$(printf '%s' "$TEST_PHONE" | tr -cd '0-9')"

for pair in "CHANNEL_ID=$CHANNEL_ID" "API_TOKEN=$API_TOKEN" \
            "TEMPLATE_NAME=$TEMPLATE_NAME" "TEMPLATE_NAMESPACE=$TEMPLATE_NAMESPACE" \
            "TEMPLATE_LANGUAGE=$TEMPLATE_LANGUAGE" "TEST_PHONE=$TEST_PHONE" \
            "TEST_CUSTOMERNAME=$TEST_CUSTOMERNAME" \
            "TEST_TICKETNUMBER=$TEST_TICKETNUMBER" \
            "TEST_PRODUCTNAME=$TEST_PRODUCTNAME" \
            "TEST_NEXTSTEP=$TEST_NEXTSTEP"; do
    val="${pair#*=}"
    if [ -z "$val" ] || [ "$val" = "___" ]; then
        echo "Missing configuration value: ${pair%%=*}" >&2
        exit 1
    fi
done

if [ -z "$PHONE_NORM" ]; then
    echo "Error: phone number has no digits after normalization" >&2
    exit 1
fi

URL="${API_BASE_URL%/}/${CHANNEL_ID}/sendTemplate"

# params carries body ONLY. Button text is fixed in the Meta template — no button param.

# {{1}} customer name → ${TEST_CUSTOMERNAME}
# {{2}} ticket number → ${TEST_TICKETNUMBER}
# {{3}} product name → ${TEST_PRODUCTNAME}
# {{4}} next step → ${TEST_NEXTSTEP}
read -r -d '' PAYLOAD <<JSON || true
{
  "phone": "${PHONE_NORM}",
  "template": "${TEMPLATE_NAME}",
  "namespace": "${TEMPLATE_NAMESPACE}",
  "language": { "policy": "deterministic", "code": "${TEMPLATE_LANGUAGE}" },
  "params": [
    {
      "type": "body",
      "parameters": [
        { "type": "text", "text": "${TEST_CUSTOMERNAME}" },
        { "type": "text", "text": "${TEST_TICKETNUMBER}" },
        { "type": "text", "text": "${TEST_PRODUCTNAME}" },
        { "type": "text", "text": "${TEST_NEXTSTEP}" }
      ]
    }

  ]
}
JSON

RESPONSE="$(curl -s -w '\n%{http_code}' -X POST "$URL" \
    -H "Content-Type: application/json" \
    -H "Authorization: Bearer ${API_TOKEN}" \
    -d "$PAYLOAD")"

HTTP_CODE="$(printf '%s' "$RESPONSE" | tail -n1)"
BODY="$(printf '%s' "$RESPONSE" | sed '$d')"

case "$BODY" in
    *'"sent":true'*) ok=1 ;;
    *) ok=0 ;;
esac

if [ "$HTTP_CODE" -ge 200 ] && [ "$HTTP_CODE" -lt 300 ] && [ "$ok" -eq 1 ]; then
    echo "Message sent to client."
    echo "API response: $BODY"
else
    echo "Send failed. HTTP status: $HTTP_CODE" >&2
    echo "$BODY" >&2
    exit 1
fi

Response and delivery status

HTTP 2xx and JSON "sent": true mean 1MSG accepted the message for sending — not that it already reached the customer's phone. Save the id field (looks like wamid.…) to correlate delivery callbacks.

200 OKResponse
{
  "sent": true,
  "message": "Sent to [email protected]",
  "description": "Message has been sent to the provider",
  "id": "wamid.HBgLMzgwNjM5..."
}
  • sent

    Accepted for sending — not yet on the customer's phone

  • id

    Store it; delivery callbacks and hookInfo are keyed on this

Delivery statuses and webhooks →

Common errors

StatusAPI responseCauseFix
200Message was not sent: template is not definednamespace, template or language is missing from the request body.Send all three. Take namespace and the exact template name from GET /templates; language is an object: {"policy": "deterministic", "code": "en"}.
200template name (…) does not exist in <language>The template is approved in a different language than the one requested.Use the exact language code the template was approved in (for example es_MX is not the same as es). Check it in GET /templates.
200Message was not sent: provide chatId, phone, bsuid, or usernameNo recipient the channel could resolve.Pass exactly one recipient: phone (country code plus number, digits only), chatId (for example [email protected]) or bsuid.

All error codes →

Common questions
