Order delivered notification via WhatsApp API

The scenario sends the customer a personalized WhatsApp template when their order is marked delivered.

Use case overview

The scenario sends the customer a personalized WhatsApp template when their order is marked delivered. The message includes the customer name, order number, product name, and delivery completion note. A static URL button opens order details, returns, or feedback.

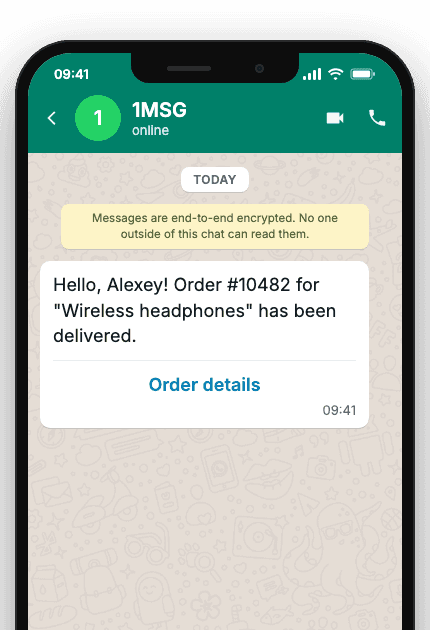

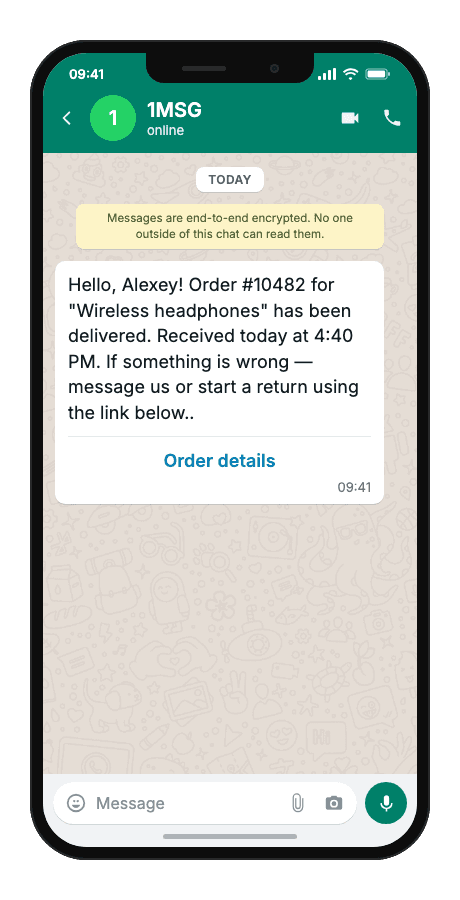

Template example

Hello, {{1}}! Order #{{2}} for "{{3}}" has been delivered. {{4}}.

Order details
  • {{1}}
    customer name
  • {{2}}
    order number
  • {{3}}
    product name
  • {{4}}
    delivery completion note (time, location hint, or next step)
  • “Order details”
    button — fixed in the Meta template
WhatsApp Business API for order delivered confirmation

When to use it

Reach for this scenario when a carrier or OMS marks an order as delivered and the buyer still has no open WhatsApp thread — you need a final receipt with next-step options, not a free-text reply. It fits e-commerce logistics teams closing the shipping loop, marketplaces answering WISMO with a last milestone, and integrators wiring carrier POD or OMS delivered webhooks to WhatsApp.

Closed WISMO loop
Customer name, order number, product name and a delivery completion note arrive as four body variables when the carrier or OMS fires the delivered event, so the buyer gets a searchable receipt in WhatsApp instead of another tracking email.
Fewer "did my order arrive?" tickets
The completion note can carry time, a location hint or next step, and the static Order details URL button opens returns, feedback or order history without a support rep retyping the delivery.
No manual delivery messages
The delivered webhook from the carrier or OMS triggers the template build and send, so fulfilment staff do not chase each parcel with a separate confirmation.
Delivery logged for CRM follow-up
Delivery result is logged after send per platform rules, so the e-commerce platform or CRM can tie the WhatsApp confirmation to returns, reviews or support follow-up on the same order record.

Workflow

  1. Delivered

    The carrier or OMS marks the order as delivered and fires an event.

    delivered

  2. Capture event

    The system resolves the customer phone number and delivery fields.

    phone: "+…"

  3. Build & send

    A personalized template message is built with four body variables and a static URL button.

    POST /sendTemplate

  4. Customer acts

    The customer receives the WhatsApp confirmation and can open order details via the button.

    user action

  5. Status tracked

    Delivery result is logged; errors are handled according to platform rules.

    status: "read"

WhatsApp Business API for order delivered confirmation

Technical implementation

Prerequisites

  1. 1MSG API Key · How to get API Key
  2. WhatsApp Business account · How to Connect WABA
  3. WhatsApp Template · How to Approve WABA Template
  4. Customer opt-in · How to Manage Customers Consent

Code examples

#!/usr/bin/env bash
set -euo pipefail

# === Configuration (replace "___" placeholders) ===

API_BASE_URL="https://api.1msg.io"        # production 1MSG API base URL
CHANNEL_ID="___"                           # channel ID from 1MSG dashboard
API_TOKEN="___"                            # channel JWT token (Bearer)

TEMPLATE_NAME="___"                        # approved template name
TEMPLATE_NAMESPACE="___"                   # template namespace (required — send fails without it)
TEMPLATE_LANGUAGE="___"                    # template language code, e.g. "en"



# === Test data ===
TEST_PHONE="___"                 # client phone in international format
TEST_CUSTOMERNAME="___"         # {{1}} customer name
TEST_TICKETNUMBER="___"         # {{2}} ticket number
TEST_PRODUCTNAME="___"         # {{3}} product name
TEST_NEXTSTEP="___"         # {{4}} next step

PHONE_NORM="$(printf '%s' "$TEST_PHONE" | tr -cd '0-9')"

for pair in "CHANNEL_ID=$CHANNEL_ID" "API_TOKEN=$API_TOKEN" \
            "TEMPLATE_NAME=$TEMPLATE_NAME" "TEMPLATE_NAMESPACE=$TEMPLATE_NAMESPACE" \
            "TEMPLATE_LANGUAGE=$TEMPLATE_LANGUAGE" "TEST_PHONE=$TEST_PHONE" \
            "TEST_CUSTOMERNAME=$TEST_CUSTOMERNAME" \
            "TEST_TICKETNUMBER=$TEST_TICKETNUMBER" \
            "TEST_PRODUCTNAME=$TEST_PRODUCTNAME" \
            "TEST_NEXTSTEP=$TEST_NEXTSTEP"; do
    val="${pair#*=}"
    if [ -z "$val" ] || [ "$val" = "___" ]; then
        echo "Missing configuration value: ${pair%%=*}" >&2
        exit 1
    fi
done

if [ -z "$PHONE_NORM" ]; then
    echo "Error: phone number has no digits after normalization" >&2
    exit 1
fi

URL="${API_BASE_URL%/}/${CHANNEL_ID}/sendTemplate"

# params carries body ONLY. Button text is fixed in the Meta template — no button param.

# {{1}} customer name → ${TEST_CUSTOMERNAME}
# {{2}} ticket number → ${TEST_TICKETNUMBER}
# {{3}} product name → ${TEST_PRODUCTNAME}
# {{4}} next step → ${TEST_NEXTSTEP}
read -r -d '' PAYLOAD <<JSON || true
{
  "phone": "${PHONE_NORM}",
  "template": "${TEMPLATE_NAME}",
  "namespace": "${TEMPLATE_NAMESPACE}",
  "language": { "policy": "deterministic", "code": "${TEMPLATE_LANGUAGE}" },
  "params": [
    {
      "type": "body",
      "parameters": [
        { "type": "text", "text": "${TEST_CUSTOMERNAME}" },
        { "type": "text", "text": "${TEST_TICKETNUMBER}" },
        { "type": "text", "text": "${TEST_PRODUCTNAME}" },
        { "type": "text", "text": "${TEST_NEXTSTEP}" }
      ]
    }

  ]
}
JSON

RESPONSE="$(curl -s -w '\n%{http_code}' -X POST "$URL" \
    -H "Content-Type: application/json" \
    -H "Authorization: Bearer ${API_TOKEN}" \
    -d "$PAYLOAD")"

HTTP_CODE="$(printf '%s' "$RESPONSE" | tail -n1)"
BODY="$(printf '%s' "$RESPONSE" | sed '$d')"

case "$BODY" in
    *'"sent":true'*) ok=1 ;;
    *) ok=0 ;;
esac

if [ "$HTTP_CODE" -ge 200 ] && [ "$HTTP_CODE" -lt 300 ] && [ "$ok" -eq 1 ]; then
    echo "Message sent to client."
    echo "API response: $BODY"
else
    echo "Send failed. HTTP status: $HTTP_CODE" >&2
    echo "$BODY" >&2
    exit 1
fi

Response and delivery status

HTTP 2xx and JSON "sent": true mean 1MSG accepted the message for sending — not that it already reached the customer's phone. Save the id field (looks like wamid.…) to correlate delivery callbacks.

200 OKResponse
{
  "sent": true,
  "message": "Sent to [email protected]",
  "description": "Message has been sent to the provider",
  "id": "wamid.HBgLMzgwNjM5..."
}
  • sent

    Accepted for sending — not yet on the customer's phone

  • id

    Store it; delivery callbacks and hookInfo are keyed on this

Delivery statuses and webhooks →

Common errors

StatusAPI responseCauseFix
200Message was not sent: template is not definednamespace, template or language is missing from the request body.Send all three. Take namespace and the exact template name from GET /templates; language is an object: {"policy": "deterministic", "code": "en"}.
200template name (…) does not exist in <language>The template is approved in a different language than the one requested.Use the exact language code the template was approved in (for example es_MX is not the same as es). Check it in GET /templates.
200Message was not sent: provide chatId, phone, bsuid, or usernameNo recipient the channel could resolve.Pass exactly one recipient: phone (country code plus number, digits only), chatId (for example [email protected]) or bsuid.

All error codes →
