Out-for-delivery notification via WhatsApp API

The scenario sends the customer a personalized WhatsApp template when their order is handed to a delivery partner for last-mile fulfilment.

Use case overview

The scenario sends the customer a personalized WhatsApp template when their order is handed to a delivery partner for last-mile fulfilment. The message includes the customer name, order number, product name, and courier or delivery window note. A static URL button opens the shipment tracking page.

Template example

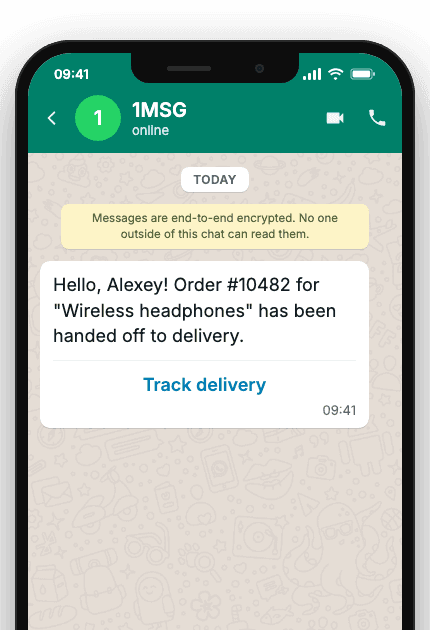

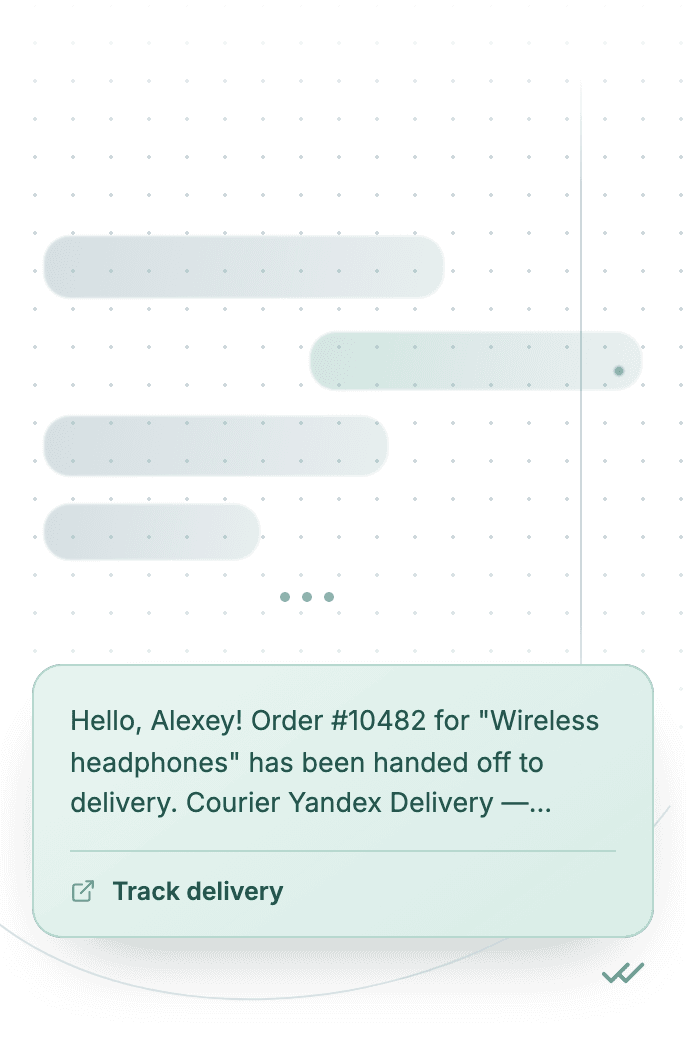

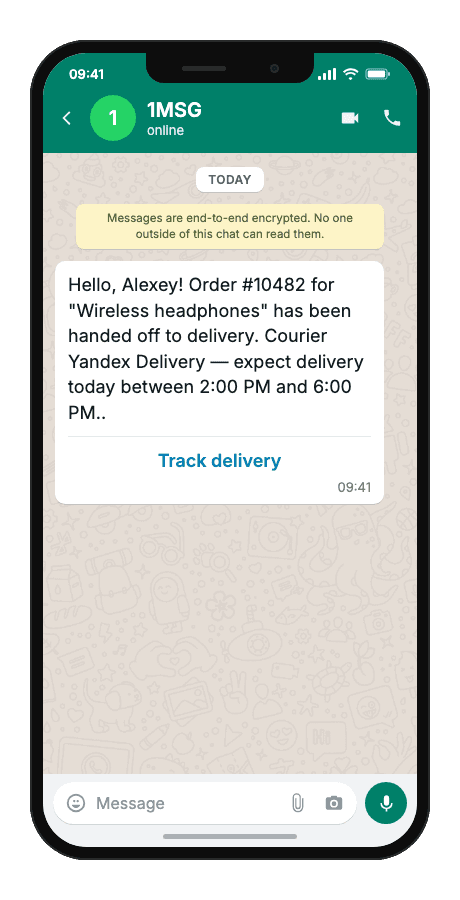

Hello, {{1}}! Order #{{2}} for "{{3}}" has been handed off to delivery. {{4}}.

Track delivery
  • {{1}}
    customer name
  • {{2}}
    order number
  • {{3}}
    product name
  • {{4}}
    courier name, delivery window, or handoff note
  • “Track delivery”
    button — fixed in the Meta template
WhatsApp Business API for order handed to delivery notification

When to use it

Reach for this scenario when the logistics platform marks an order as handed to a last-mile courier or delivery partner and the customer still has no open WhatsApp conversation — only an approved template can reach them first. It fits last-mile logistics teams bridging hub-to-courier moves, e-commerce stores clarifying the gap between warehouse shipped and courier en route, and integrators wiring TMS handoff webhooks into WhatsApp outbound.

Clearer last-mile visibility
Four body variables carry the customer name, order number, product name, and courier or delivery window note, so the handoff lands in WhatsApp with timing context instead of leaving the customer stuck after the warehouse update.
Tracking without support calls
A static URL button fixed in the approved template opens the shipment tracking page from the same message, so the customer does not hunt for a link in email or call for status.
No manual status messages
The TMS or carrier handoff event resolves the phone number and fires the template, so no one retypes order details when the parcel moves to the courier network.
Works outside the 24-hour window
Because the customer may have no open conversation after warehouse shipment, an approved template is the channel that can confirm last-mile delivery started without waiting for a reply.
Logged handoff for CRM follow-up
Delivery result is written back after send, so the e-commerce platform or CRM keeps the same record for logistics follow-up.

Workflow

  1. Trigger

    The TMS or carrier marks the order as handed to delivery and fires an event.

    event · triggered

  2. Capture event

    The system resolves the customer phone number and handoff fields.

    phone: "+…"

  3. Build & send

    A personalized template message is built with four body variables and a static URL button.

    POST /sendTemplate

  4. Delivered

    The customer receives the WhatsApp update and can open tracking via the button.

    delivered

  5. Status tracked

    Delivery result is logged; errors are handled according to platform rules.

    status: "read"

WhatsApp Business API for order handed to delivery notification

Technical implementation

Prerequisites

  1. 1MSG API Key · How to get API Key
  2. WhatsApp Business account · How to Connect WABA
  3. WhatsApp Template · How to Approve WABA Template
  4. Customer opt-in · How to Manage Customers Consent

Code examples

#!/usr/bin/env bash
set -euo pipefail

# === Configuration (replace "___" placeholders) ===

API_BASE_URL="https://api.1msg.io"        # production 1MSG API base URL
CHANNEL_ID="___"                           # channel ID from 1MSG dashboard
API_TOKEN="___"                            # channel JWT token (Bearer)

TEMPLATE_NAME="___"                        # approved template name
TEMPLATE_NAMESPACE="___"                   # template namespace (required — send fails without it)
TEMPLATE_LANGUAGE="___"                    # template language code, e.g. "en"



# === Test data ===
TEST_PHONE="___"                 # client phone in international format
TEST_CUSTOMERNAME="___"         # {{1}} customer name
TEST_TICKETNUMBER="___"         # {{2}} ticket number
TEST_PRODUCTNAME="___"         # {{3}} product name
TEST_NEXTSTEP="___"         # {{4}} next step

PHONE_NORM="$(printf '%s' "$TEST_PHONE" | tr -cd '0-9')"

for pair in "CHANNEL_ID=$CHANNEL_ID" "API_TOKEN=$API_TOKEN" \
            "TEMPLATE_NAME=$TEMPLATE_NAME" "TEMPLATE_NAMESPACE=$TEMPLATE_NAMESPACE" \
            "TEMPLATE_LANGUAGE=$TEMPLATE_LANGUAGE" "TEST_PHONE=$TEST_PHONE" \
            "TEST_CUSTOMERNAME=$TEST_CUSTOMERNAME" \
            "TEST_TICKETNUMBER=$TEST_TICKETNUMBER" \
            "TEST_PRODUCTNAME=$TEST_PRODUCTNAME" \
            "TEST_NEXTSTEP=$TEST_NEXTSTEP"; do
    val="${pair#*=}"
    if [ -z "$val" ] || [ "$val" = "___" ]; then
        echo "Missing configuration value: ${pair%%=*}" >&2
        exit 1
    fi
done

if [ -z "$PHONE_NORM" ]; then
    echo "Error: phone number has no digits after normalization" >&2
    exit 1
fi

URL="${API_BASE_URL%/}/${CHANNEL_ID}/sendTemplate"

# params carries body ONLY. Button text is fixed in the Meta template — no button param.

# {{1}} customer name → ${TEST_CUSTOMERNAME}
# {{2}} ticket number → ${TEST_TICKETNUMBER}
# {{3}} product name → ${TEST_PRODUCTNAME}
# {{4}} next step → ${TEST_NEXTSTEP}
read -r -d '' PAYLOAD <<JSON || true
{
  "phone": "${PHONE_NORM}",
  "template": "${TEMPLATE_NAME}",
  "namespace": "${TEMPLATE_NAMESPACE}",
  "language": { "policy": "deterministic", "code": "${TEMPLATE_LANGUAGE}" },
  "params": [
    {
      "type": "body",
      "parameters": [
        { "type": "text", "text": "${TEST_CUSTOMERNAME}" },
        { "type": "text", "text": "${TEST_TICKETNUMBER}" },
        { "type": "text", "text": "${TEST_PRODUCTNAME}" },
        { "type": "text", "text": "${TEST_NEXTSTEP}" }
      ]
    }

  ]
}
JSON

RESPONSE="$(curl -s -w '\n%{http_code}' -X POST "$URL" \
    -H "Content-Type: application/json" \
    -H "Authorization: Bearer ${API_TOKEN}" \
    -d "$PAYLOAD")"

HTTP_CODE="$(printf '%s' "$RESPONSE" | tail -n1)"
BODY="$(printf '%s' "$RESPONSE" | sed '$d')"

case "$BODY" in
    *'"sent":true'*) ok=1 ;;
    *) ok=0 ;;
esac

if [ "$HTTP_CODE" -ge 200 ] && [ "$HTTP_CODE" -lt 300 ] && [ "$ok" -eq 1 ]; then
    echo "Message sent to client."
    echo "API response: $BODY"
else
    echo "Send failed. HTTP status: $HTTP_CODE" >&2
    echo "$BODY" >&2
    exit 1
fi

Response and delivery status

HTTP 2xx and JSON "sent": true mean 1MSG accepted the message for sending — not that it already reached the customer's phone. Save the id field (looks like wamid.…) to correlate delivery callbacks.

200 OKResponse
{
  "sent": true,
  "message": "Sent to [email protected]",
  "description": "Message has been sent to the provider",
  "id": "wamid.HBgLMzgwNjM5..."
}
  • sent

    Accepted for sending — not yet on the customer's phone

  • id

    Store it; delivery callbacks and hookInfo are keyed on this

Delivery statuses and webhooks →

Common errors

StatusAPI responseCauseFix
200Message was not sent: template is not definednamespace, template or language is missing from the request body.Send all three. Take namespace and the exact template name from GET /templates; language is an object: {"policy": "deterministic", "code": "en"}.
200template name (…) does not exist in <language>The template is approved in a different language than the one requested.Use the exact language code the template was approved in (for example es_MX is not the same as es). Check it in GET /templates.
200Message was not sent: provide chatId, phone, bsuid, or usernameNo recipient the channel could resolve.Pass exactly one recipient: phone (country code plus number, digits only), chatId (for example [email protected]) or bsuid.

All error codes →
