WhatsApp Business API for order shipped notification
The scenario sends the customer a personalized WhatsApp template when their order is marked shipped in the OMS or handed to a carrier.
Use case overview
The scenario sends the customer a personalized WhatsApp template when their order is marked shipped in the OMS or handed to a carrier. The message includes the customer name, order number, product name, and tracking or delivery estimate note. A static URL button opens the shipment tracking page.
Template example

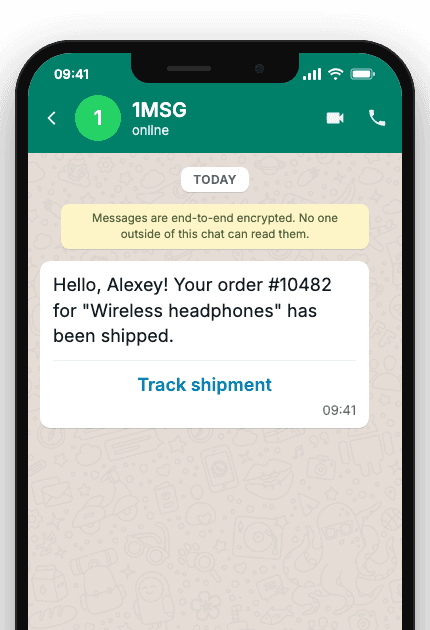

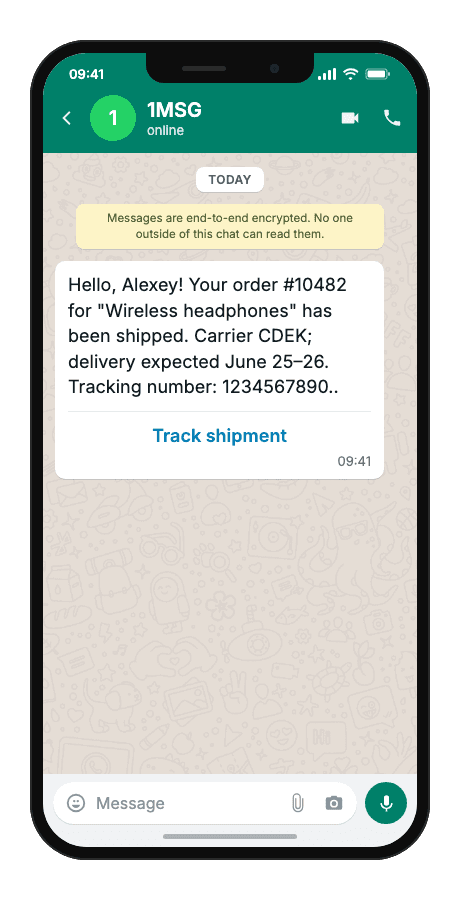

Hello, {{1}}! Your order #{{2}} for "{{3}}" has been shipped. {{4}}.
- {{1}}customer name
- {{2}}order number
- {{3}}product name
- {{4}}carrier name, tracking hint, or delivery estimate
- “Track shipment”button — fixed in the Meta template

When to use it
Use this scenario when the OMS or carrier marks an order as shipped and the customer needs tracking context without an open WhatsApp chat — only an approved template can reach them first. It fits e-commerce logistics teams, marketplaces looking to cut WISMO volume after the ready milestone, and integrators wiring TMS or carrier webhooks into WhatsApp outbound.
Workflow
- Trigger
The OMS or carrier marks the order as shipped and fires an event.
event·triggered - Capture event
The system resolves the customer phone number and shipment fields.
phone:"+…" - Build & send
A personalized template message is built with four body variables and a static URL button.
POST/sendTemplate - Delivered
The customer receives the WhatsApp update and can open tracking via the button.
delivered - Status tracked
Delivery result is logged; errors are handled according to platform rules.
status:"read"

Technical implementation
Prerequisites
- 1MSG API Key · How to get API Key
- WhatsApp Business account · How to Connect WABA
- WhatsApp Template · How to Approve WABA Template
- Customer opt-in · How to Manage Customers Consent
Code examples
#!/usr/bin/env bash
set -euo pipefail
# === Configuration (replace "___" placeholders) ===
API_BASE_URL="https://api.1msg.io" # production 1MSG API base URL
CHANNEL_ID="___" # channel ID from 1MSG dashboard
API_TOKEN="___" # channel JWT token (Bearer)
TEMPLATE_NAME="___" # approved template name
TEMPLATE_NAMESPACE="___" # template namespace (required — send fails without it)
TEMPLATE_LANGUAGE="___" # template language code, e.g. "en"
# === Test data ===
TEST_PHONE="___" # client phone in international format
TEST_CUSTOMERNAME="___" # {{1}} customer name
TEST_TICKETNUMBER="___" # {{2}} ticket number
TEST_PRODUCTNAME="___" # {{3}} product name
TEST_NEXTSTEP="___" # {{4}} next step
PHONE_NORM="$(printf '%s' "$TEST_PHONE" | tr -cd '0-9')"
for pair in "CHANNEL_ID=$CHANNEL_ID" "API_TOKEN=$API_TOKEN" \
"TEMPLATE_NAME=$TEMPLATE_NAME" "TEMPLATE_NAMESPACE=$TEMPLATE_NAMESPACE" \
"TEMPLATE_LANGUAGE=$TEMPLATE_LANGUAGE" "TEST_PHONE=$TEST_PHONE" \
"TEST_CUSTOMERNAME=$TEST_CUSTOMERNAME" \
"TEST_TICKETNUMBER=$TEST_TICKETNUMBER" \
"TEST_PRODUCTNAME=$TEST_PRODUCTNAME" \
"TEST_NEXTSTEP=$TEST_NEXTSTEP"; do
val="${pair#*=}"
if [ -z "$val" ] || [ "$val" = "___" ]; then
echo "Missing configuration value: ${pair%%=*}" >&2
exit 1
fi
done
if [ -z "$PHONE_NORM" ]; then
echo "Error: phone number has no digits after normalization" >&2
exit 1
fi
URL="${API_BASE_URL%/}/${CHANNEL_ID}/sendTemplate"
# params carries body ONLY. Button text is fixed in the Meta template — no button param.
# {{1}} customer name → ${TEST_CUSTOMERNAME}
# {{2}} ticket number → ${TEST_TICKETNUMBER}
# {{3}} product name → ${TEST_PRODUCTNAME}
# {{4}} next step → ${TEST_NEXTSTEP}
read -r -d '' PAYLOAD <<JSON || true
{
"phone": "${PHONE_NORM}",
"template": "${TEMPLATE_NAME}",
"namespace": "${TEMPLATE_NAMESPACE}",
"language": { "policy": "deterministic", "code": "${TEMPLATE_LANGUAGE}" },
"params": [
{
"type": "body",
"parameters": [
{ "type": "text", "text": "${TEST_CUSTOMERNAME}" },
{ "type": "text", "text": "${TEST_TICKETNUMBER}" },
{ "type": "text", "text": "${TEST_PRODUCTNAME}" },
{ "type": "text", "text": "${TEST_NEXTSTEP}" }
]
}
]
}
JSON
RESPONSE="$(curl -s -w '\n%{http_code}' -X POST "$URL" \
-H "Content-Type: application/json" \
-H "Authorization: Bearer ${API_TOKEN}" \
-d "$PAYLOAD")"
HTTP_CODE="$(printf '%s' "$RESPONSE" | tail -n1)"
BODY="$(printf '%s' "$RESPONSE" | sed '$d')"
case "$BODY" in
*'"sent":true'*) ok=1 ;;
*) ok=0 ;;
esac
if [ "$HTTP_CODE" -ge 200 ] && [ "$HTTP_CODE" -lt 300 ] && [ "$ok" -eq 1 ]; then
echo "Message sent to client."
echo "API response: $BODY"
else
echo "Send failed. HTTP status: $HTTP_CODE" >&2
echo "$BODY" >&2
exit 1
fi
Response and delivery status
HTTP 2xx and JSON "sent": true mean 1MSG accepted the message for sending — not that it already reached the customer's phone. Save the id field (looks like wamid.…) to correlate delivery callbacks.
{
"sent": true,
"id": "wamid.HBgLMzgwNjM5...",
"message": "Message accepted for delivery"
}sentAccepted for sending — not yet on the customer's phone
idStore it; delivery callbacks and
hookInfoare keyed on this
Delivery itself arrives later, as a separate callback. Register a webhook (POST …/webhook) and 1MSG POSTs status updates to your HTTPS endpoint in a top-level hooks[] payload.
{
"hooks": [
{
"id": "gBGGeSaGViBfAgnlzOSHEwK9O6F",
"type": "message",
"status": "sent",
"timestamp": "1654864094",
"recipient_id": "556123122026"
}
]
}statussent,delivered,read— or a failure status when applicableidCorrelates the callback with the
idreturned by the send calltimestampUnix seconds, as a string
If you would rather not receive callbacks, poll GET {base}/{channel}/hookInfo?messageId=<id> instead. In practice delivery often completes within seconds — but the API contract does not guarantee it, so never block a flow waiting on it.
Common errors
| Status | Response | Cause |
|---|---|---|
| 200 | Message was not sent: template is not defined | namespace, template or language missing from the request body. |
| 200 | template name (…) does not exist in <language> | The template is approved in a different language than the one requested. |
| 200 | Message was not sent: provide chatId, phone, bsuid, or username | No recipient the channel could resolve. |
| 403 | access denied | The token is wrong, or belongs to a different channel than the URL. |
| 429 | too many requests. please try later | The channel is over its send rate. |
